260m Depth Dongfeng Truck Water Well Drilling Rig 155KW Load Vehicle Engine
Product Description
Truck - mounted water well drilling rigs stand out because of their overall equipment characteristics. The drilling rig, water pump or compressor, drilling tower, etc. are all assembled on the truck. This unique design allows equipment such as drilling rigs and water pumps ( or compressors ) to be installed directly on the chassis of a car or tractor, using the power of the vehicle itself to drive equipment such as drilling rigs, water pumps ( or compressors ), etc., greatly simplifying the construction process.
The truck - mounted water well drilling rig also has the ability to place the drilling tower upside down on the vehicle for overall relocation, thereby significantly shortening the installation and dismantling time and improving construction efficiency. It has a wide range of applications. It can be used not only in plains and low hilly areas, but also in drilling operations in various terrain environments such as deserts, jungles, swamps and river network areas, demonstrating its excellence in various complex terrain conditions.
Product Specifications
| Model | RCF260T |
| Dimension | mm | 10500×2500×3300 |
| Weight | T | 20 |
| Aperture | mm | 140-350 |
| Drilling depth | m | 260 |
| Feed stroke | mm | 3400 |
| Travel speed | km/h | 80 |
| Grade ability | Max. | 30° |
| Wind pressure | Mpa | 1.7-3.0 |
| Air consumption | m³/min | 17-31 |
| Drill pipe diameter | mm | Φ76/89 |
| Drill pipe length | m | 3 |
| Lifting force | T | 15 |
| Drilling rig Engine power | kw | 70 |
| Rotary speed | rpm | 45-70 |
| Rotation torque | N.m | 4000-5300 |
| Mud pump | 250L/min | BW250 (optional item ) |
| Carrying vehicle | | Dongfeng truck 6X4 |
| Load vehicle engine | | 155KW |
| Driving form | | 6X4 |
| Steering wheel | | left position |
| Air compressor | | 24/22,24m3/min ,22bar ,228KW Yuchai engine |
Product Features
The RCF260T truck - mounted water well drilling rig is a high - quality, multi - functional drilling rig with a drilling depth of 260m and a drilling diameter range of 140 - 350 mm, which can effectively carry out operations in different geological environments. It adopts a carefully designed structure to operate stably in harsh drilling environments, and is equipped with advanced masts and high - quality drill strings to cope with challenging drilling conditions. The powerful drilling motor provides the necessary torque and power to effectively drill and clear rock formations. The RCF260T has the advantage of being easy to transport and install. Its user-friendly interface makes operation simple and suitable for drillers of all experience levels.

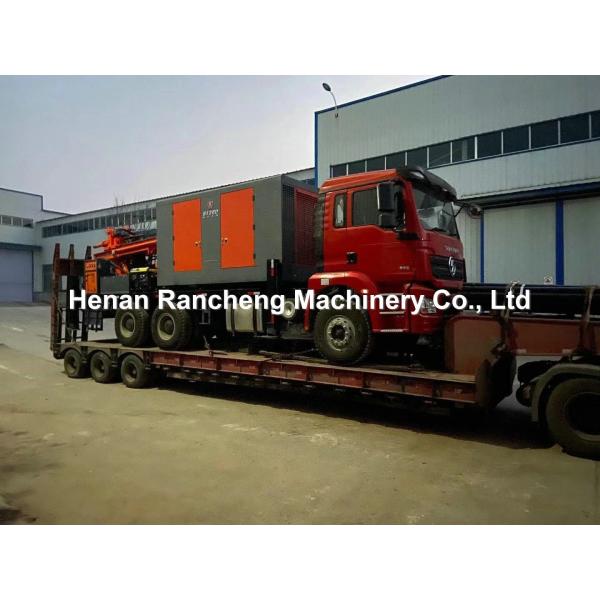

Product Image
